HLS Stretch Wrapping Machine

Strong and Durable Build

Engineered with a box-type column and robust steel structure, the HLS is a durable and reliable stretch wrapping machine.

Runs Smoothly with Minimal Downtime

Designed for maximum reliability, the machine features POB rollers on the turntable for smooth operation and reduced noise levels.

Automatically Detects Pallets

Equipped with advanced sensors that automatically detect pallet height for precise and efficient wrapping.

Stretches Film Up to 300%

Offers variable pre-stretch settings up to 300% to maximize film usage and minimize waste.

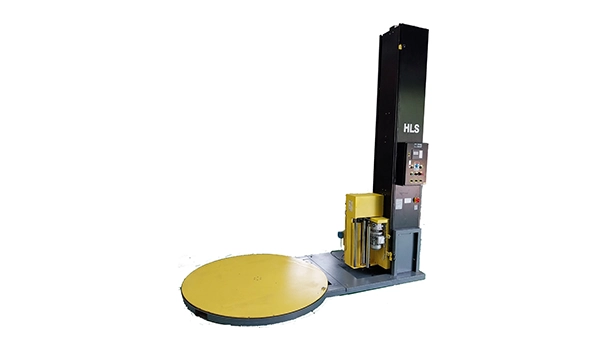

HLS Sensor Stretch Wrapping Machine

Introducing the HLS, a powerful semi-automatic turntable stretch wrapping machine designed to streamline your packaging operations. Engineered for heavy-duty applications, the HLS delivers dependable performance even in the most demanding environments. Equipped with AC drives and motors, it reduces maintenance needs and ensures smooth, uninterrupted operation.

The powered pre-stretch system allows film to be stretched up to 300%, helping you get the most out of your materials and lower overall film usage. Automatic pallet height sensing ensures accurate, consistent wrapping without the need for manual adjustments. A user-friendly PLC control system enables easy programming and customization, giving you full control over stretch performance.

The HLS also includes a reinforcement wrap function to increase load stability and security. With a generous 2.6-meter wrapping height, it's ideal for wrapping high cube containers, ensuring complete and efficient coverage.

Experience the advanced capabilities and reliable performance of the HLS and take your packaging process to the next level.

Features & Benefits

✔️ High-Efficiency Pre-Stretch System: Film pre-stretches up to 300% for maximum film savings and load stability.
✔️ Automatic Load Height Detection: Built-in pallet height sensor ensures optimal wrapping based on load dimensions.
✔️ Reinforcement Wrapping: Allows additional wraps at any height for enhanced load stability.
✔️ Quiet & Durable Operation: POB turntable rollers ensure smooth, low-noise performance with long-lasting durability.
✔️ Easy Film Loading: Simple access through the pre-stretch unit for fast and hassle-free film changes.
✔️ User-Friendly Controls: Intuitive push-button interface for easy operation.
✔️ Tilt Function: Designed with a tilting feature for easier installation and transportation.
✔️ Load Presence Detection: Machine will not operate without a pallet/load, enhancing safety and energy efficiency.
✔️ Integrated Film Cutter: Built-in cutter simplifies and speeds up film cutting at the end of the cycle.
✔️ Enhanced Safety Features: Includes emergency stop and Lockout/Tagout (LOTO) functionality for safe maintenance.

Technical Specifications

Machine Dimensions
Length (mm) 2900
Width (mm) 1610
Height (mm) 2800
Weight (Kg) 700
Pallet Dimensions
Length (mm) 1135 Max
Width (mm) 1135 Max
Height (mm) 2600 Max
Weight (Kg) up to 2000
Wrap Height Turntable Surface
Utility Requirements / Electrical
Power 230 VAC, 1-Phase, 50 Hz, 16A
Consumption (kw) 2.0
Controller PLC
Height Detection Photo Eye
Stretch Information Digital Text Display
Speed Control VFD
Turntable
Load Per Hour Up to 30
Turntable Speed 9 RPM
Turntable Diameter (mm) 1605
Turntable Rollers High resistance POB
Turntable Drive Chain and Sprocket
Turntable Motor 1.0 HP, 415 VAC, 3- Phase, 50 Hz
Turntable Height (mm) 85 from ground
Film Information
Pre-Stretch Type Powered
Film Stretch Variable up to 300%
Film Roll Width (mm) 508
Film Roll Diameter (mm) 254
Core Size (mm) 76.3
Film Tension (kg) 0.5 Min
Carriage Speed Adjustable up/down through VFD
Pre-Stretch Motor 0.5 HP, 415 VAC, 3-Phase, 50 Hz
Elevator Mode 0.5 HP, 415 VAC, 3-Phase, 50 Hz

Loading Ramp Included: Supplied with a ramp for easy loading and unloading of pallets.


Film Compatibility: Standard machine supports stretch film thickness from 21 to 29 μm.

  • - Optional upgrade available to accommodate film up to 51 μm.

Customizable Add-Ons Available:

  • - Safety fencing
  • - Horse-shoe turntable
  • - Integrated weighing scale
