The Pai and Pai Enterprises carton wrapper provides a solution which can automate your processes while securely wrapping boxes giving your operator control via an easy to use HMI system. Get in touch with our team to discuss how this model can be integrated into your facility and our full portfolio of products can assist in your packaging needs.

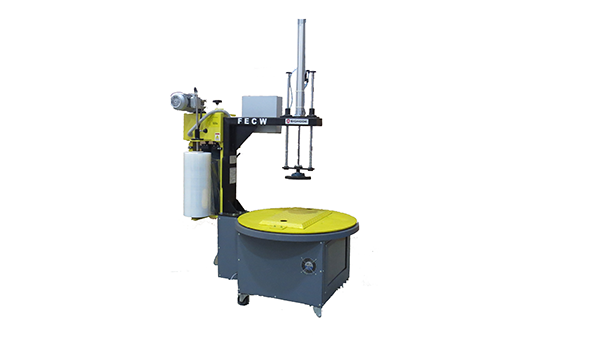

Carton Stretch Wrapping Machine
Box / Carton Wrapping Machine
Our Carton Stretch Wrapping Machine is designed to make carton and box wrapping fast, simple, and efficient. It’s easy for operators to use, helping you wrap packages securely and with confidence.
A built-in platform ensures proper film overlap, while the user-friendly HMI control system allows quick access to all machine settings. This automation significantly reduces wrapping time compared to manual methods, increasing productivity and minimizing errors.
By tightly and consistently wrapping each carton, the machine helps reduce the risk of damage during transit and improves the overall look of your packages. It also minimizes film waste by using only the necessary amount of material — helping you cut costs and reduce waste.
Ideal for any packaging line looking to improve efficiency and product protection.
Features & Benefits
✔️ Reliable Performance: Equipped with high-quality AC drives and motors for consistent, long-lasting operation.
✔️ Efficient Film Stretching: Powered pre-stretch system extends film up to 300%, saving material and improving wrap strength.
✔️ Versatile Film Tension Control: Adjust film tension independently to securely wrap everything from light to heavy cartons.
✔️ Smart Controls: PLC-based system with a digital display that shows stretch percentage and film usage per carton — helping you stay efficient and cost-conscious.
✔️ User-Friendly Design: Designed with a convenient operating height for easier handling and operation.
✔️ Secure Wrapping: Includes a top-holding attachment to keep cartons stable during wrapping.
✔️ Damage & Theft Protection: Forms a tight, protective layer around cartons to reduce risks from pilferage and damage during transit.
✔️ Wide Application: Ideal for wrapping a range of products, including consumer goods, cosmetics, electronic components, and more.
✔️ Efficient Film Stretching: Powered pre-stretch system extends film up to 300%, saving material and improving wrap strength.
✔️ Versatile Film Tension Control: Adjust film tension independently to securely wrap everything from light to heavy cartons.
✔️ Smart Controls: PLC-based system with a digital display that shows stretch percentage and film usage per carton — helping you stay efficient and cost-conscious.
✔️ User-Friendly Design: Designed with a convenient operating height for easier handling and operation.
✔️ Secure Wrapping: Includes a top-holding attachment to keep cartons stable during wrapping.
✔️ Damage & Theft Protection: Forms a tight, protective layer around cartons to reduce risks from pilferage and damage during transit.
✔️ Wide Application: Ideal for wrapping a range of products, including consumer goods, cosmetics, electronic components, and more.
Technical Specifications
| Machine Dimensions | |
|---|---|
| Length (mm) | 1515 |
| Width (mm) | 910 |
| Height (mm) | 1640 |
| Weight (Kg) | 320 |
| Carton Dimensions | |
|---|---|
| Length (mm) | 200 - 750 |
| Width (mm) | 200 - 500 |
| Height (mm) | 200 - 450 |
| Diagonal (mm) | 910 |
| Weight (kg) | 150 (max.) |
| Utility Requirements / Electrical | |
|---|---|
| Power | 230 VAC, 1 Phase, 50 Hz, 16A |
| Consumption (kw) | 1.0 |
| Pneumatic | 4 to 5 Bar - Filtered Air |
| Turntable Specifications | |
|---|---|
| Turntable Speed | up to 20 RPM (VFD Control) |
| Turntable Diameter (mm) | 910 |
| Turntable Rollers | Tapered Bearing |
| Turntable Drive | Gear (worm) Reducer |
| Turntable Motor | 0.5 HP, 415 VAC, 3-Phase, 50 Hz |
| Film Specifications | |
|---|---|
| Pre-Stretch Type | Powered |
| Film Stretch | Variable up to 300% |
| Film Roll Width (mm) | 250 - 500 |
| Film Roll Diameter (mm) | 254 Max |
| Core Size (mm) | 76.2 |
| Elongation | Up to 300% |
| Film Thickness (μm) | 21 to 29 |
Looking to streamline and automate your box wrapping process?
Our Carton Wrapper from Pai & Pai Enterprises is designed to do just that. It offers a reliable, automated solution that wraps boxes securely while giving your team full control through a user-friendly HMI interface.
Want to see how it can fit into your operations? Get in touch with us today — we’ll help you explore how this model, along with our full range of packaging solutions, can optimize your workflow.
